Founded in 1969, LCOA "Laminating Company of America" brings over 40 years of expertise in Pressing, Laminating and Fabricating of Films, Foils and Composite Materials to your operation.
LAMINATION SERVICES
Hot Roll Laminating
In-line multi-layer lamination with custom adhesive delivery system

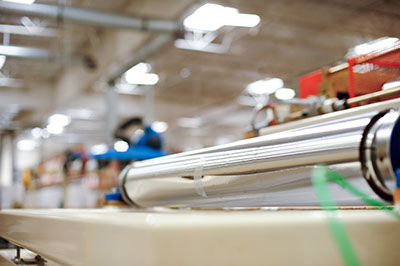

Hot Roll Press
Chrome-plated hot rolls
Top and bottom rolls apply to substrate simultaneously
LAMINATION SERVICES
PRESSING SERVICES

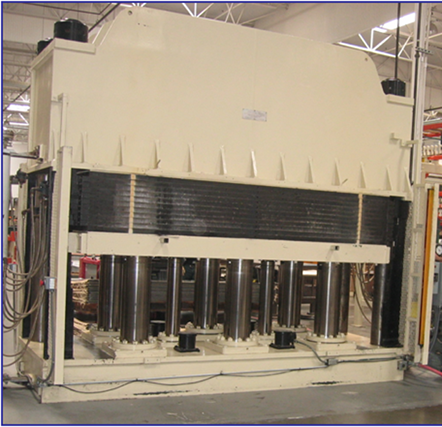

FLAT PANEL PRESSING SERVICES
Production Presses up to 4 foot x 10 foot panels
Maximum 200 psi on a 4’ x 10’ (1.22m x 3.05m) sheet
Maximum 250 psi on a 4’ x 8’ (1.22m x 2.44m) sheet
Maximum 400 psi on a 4’ x 5’ (1.22m x 1.52m) sheet
High Volume, Large Format capability
10 opening press with 3” (76mm) opening per book
MAX temperature 335°F (168°C)
Chiller tower to control cool down
Real time recording of temperature and pressure
Steam-powered, very efficient and environmentally friendly

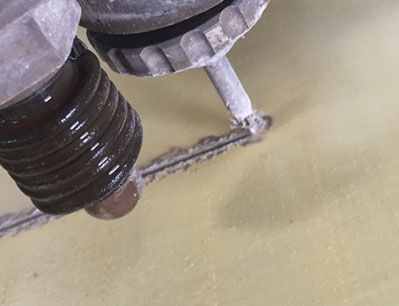

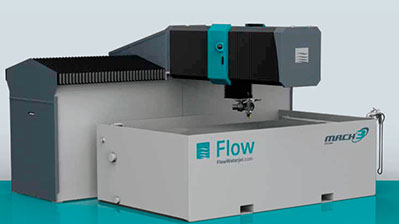

WATER JET SERVICES
WATER JET SERVICES
Waterjet is the ultimate machine tool, no matter the application. Why?
On top of ultimate versatility there are three main benefits to waterjet cutting:
Cold Cutting Process
This means no heat or stress is imparted into your cut materials.
Satin Smooth Edge
This means you can take the part directly off of the cutting table, no secondary finishing required.
Minimal Kerf
Minimal kerf and high accuracy combined with the ability to cut virtually any material means more opportunities. Waterjet cutting @ 80,000 PSI
MAX 9’ x12’ (2.75m x 3.65m)
Pure Waterjet
Hair-thin pure waterjet stream ideal for cutting soft materials.
Standard Waterjet
Uses garnet abrasive to cut virtually any hard material
CORE MATERIALS
Core Materials
Honeycomb
Stiff and extremely lightweight.
Balsa
Structural core with high shear strength
Foam
Very little weight with a great deal of volume and structure.
Various wood products:
OSB or plywood (used in wall panels).
Decorative laminates:
Fiber reinforced composite structure, or composite sandwich panel skin sheet.
Metal Clad Laminates
EMI Shielding
